Independently of the capacitor shape the capacitance is defined as the ratio
between the charge Q on the electrode and the voltage U between the electrodes.

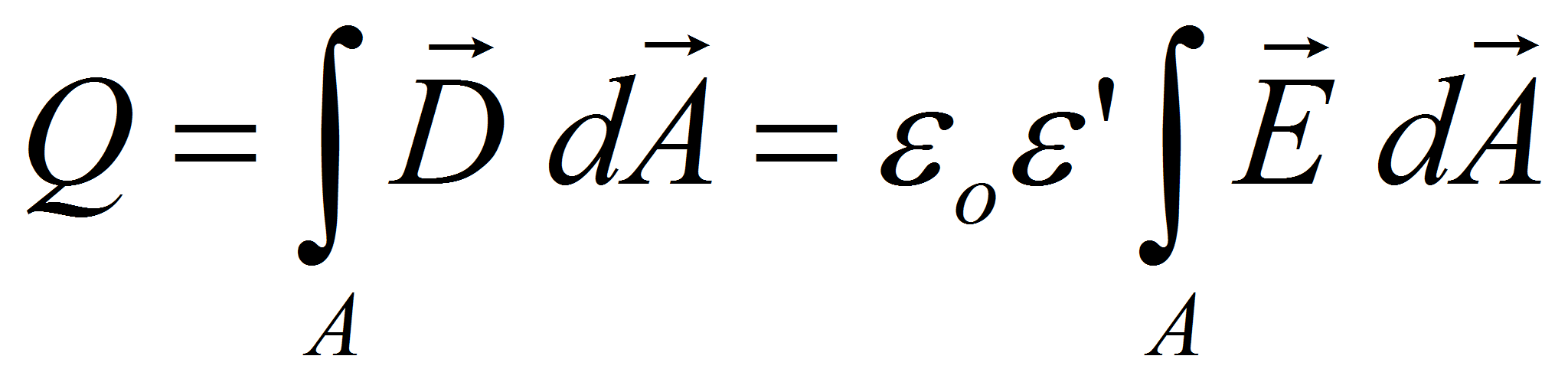

The charge stored on electrodes of surface A separated by a dielectric
material of permittivity ε , is given by the surface integral of the scalar product of the electric
displacement D with the surface vector of the surface element dA

Capacitance

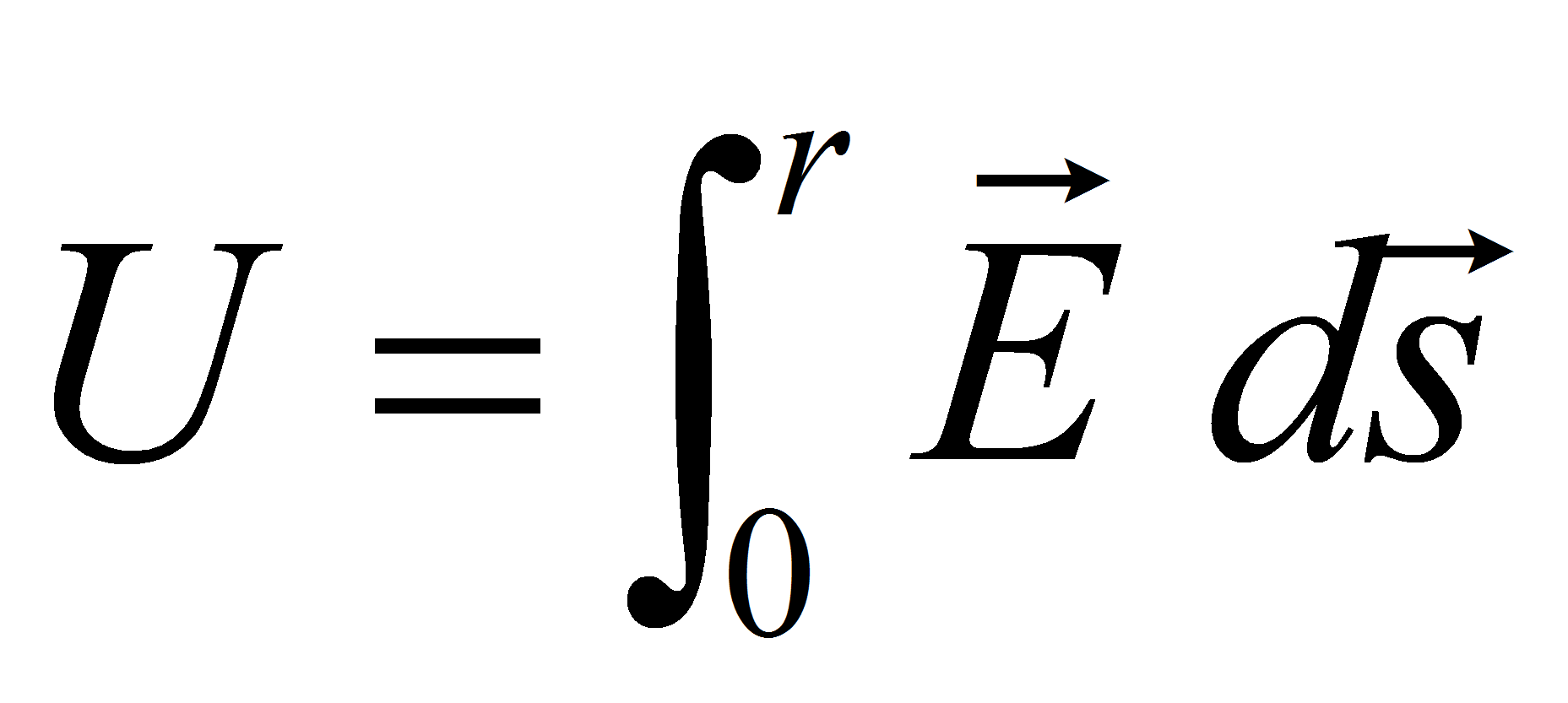

The potential between the electrodes is given by the line integral of E along the arc s:

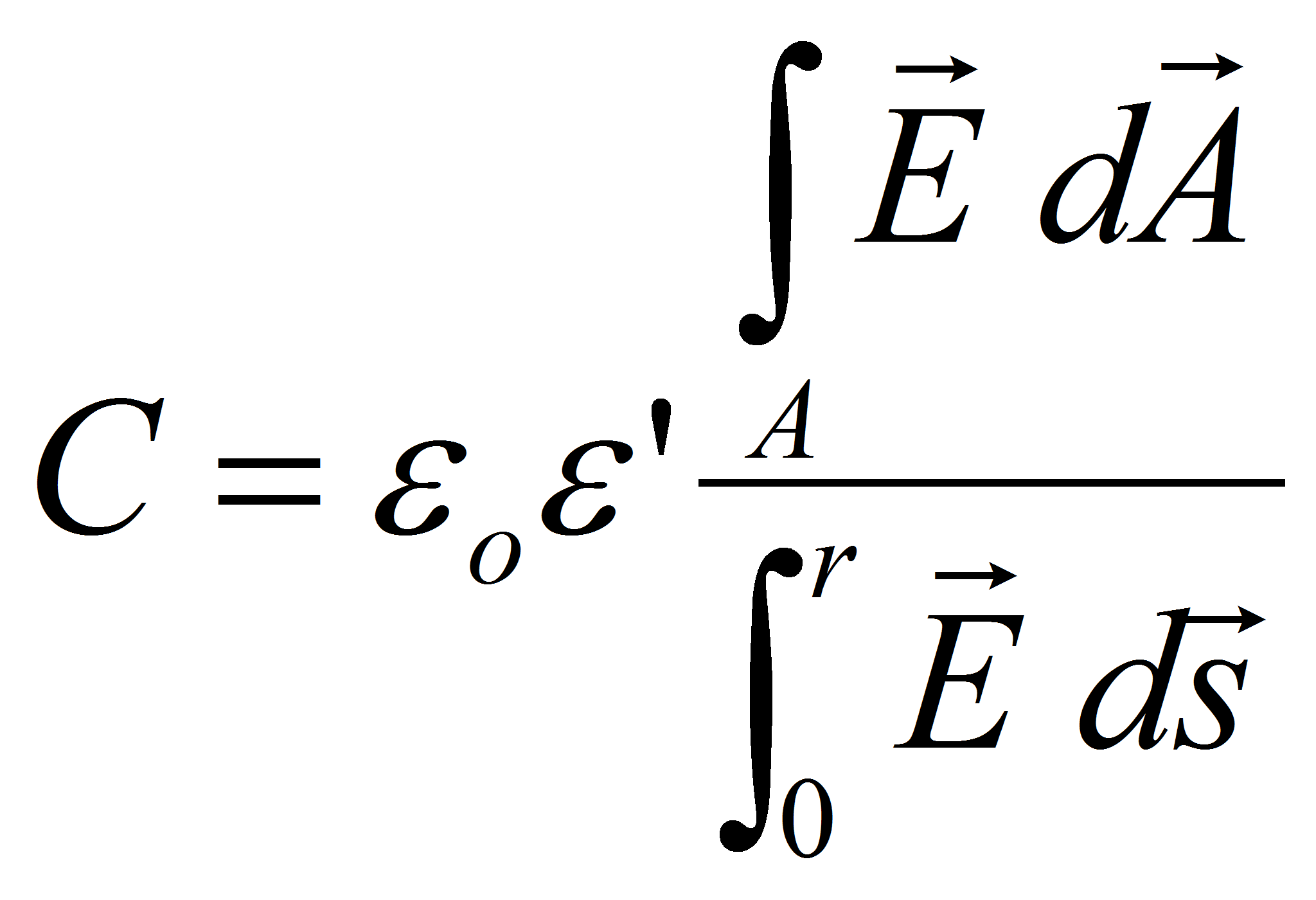

which leads to the expression of the capacitance

Capacitance determination

There are several methods used to determine the capacitance of a system:

1)Approximation

2)Exact analytical method

3)Conform transformation

4)Graphical method

Approximation

In most of industrial capacitor the dielectric thickness d is
much smaller than the electrode surface. In this case it's sufficient
to perform the calculation with the approximation of flat parallel electrodes.

In this approximation the capacitance doesn't depend on the electric
field E.

Exact analytic method

From Laplace law

The capacitance is calculated with

Example: spherical capacitor

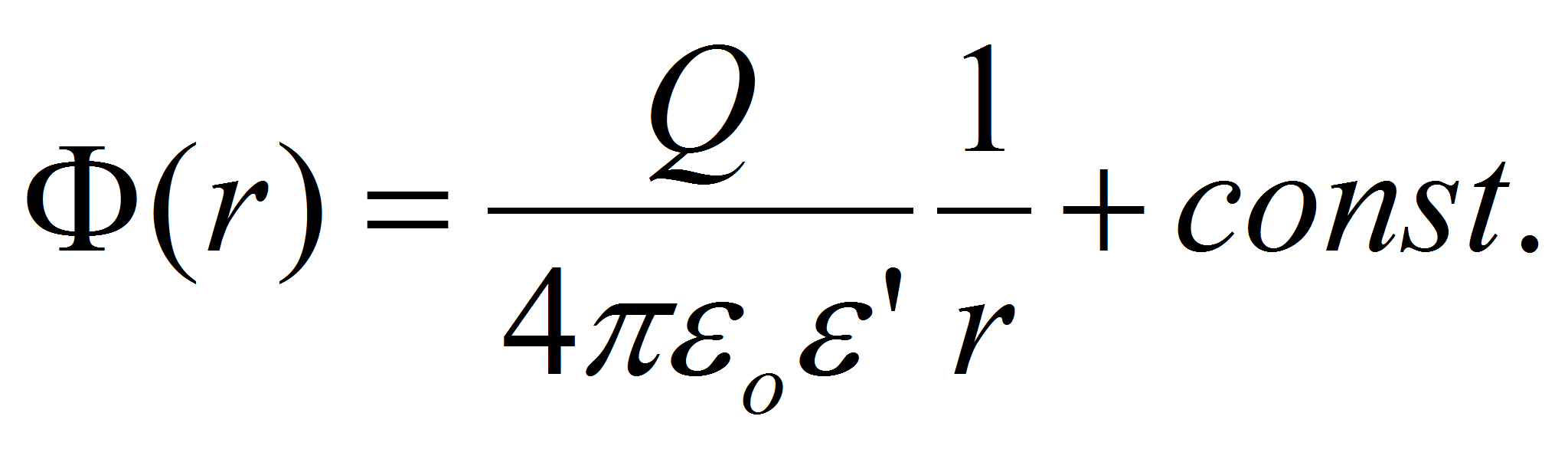

The potential of a point charge is given by

The capacitance is given by:

Where r_{e} is the radius of the external electrode, r_{i}
the radius of the internal electrode and ε
the dielectric permittivity of the material which between the 2 spheres.

Conform transformation

An interesting method for calculating the capacitance is to use the

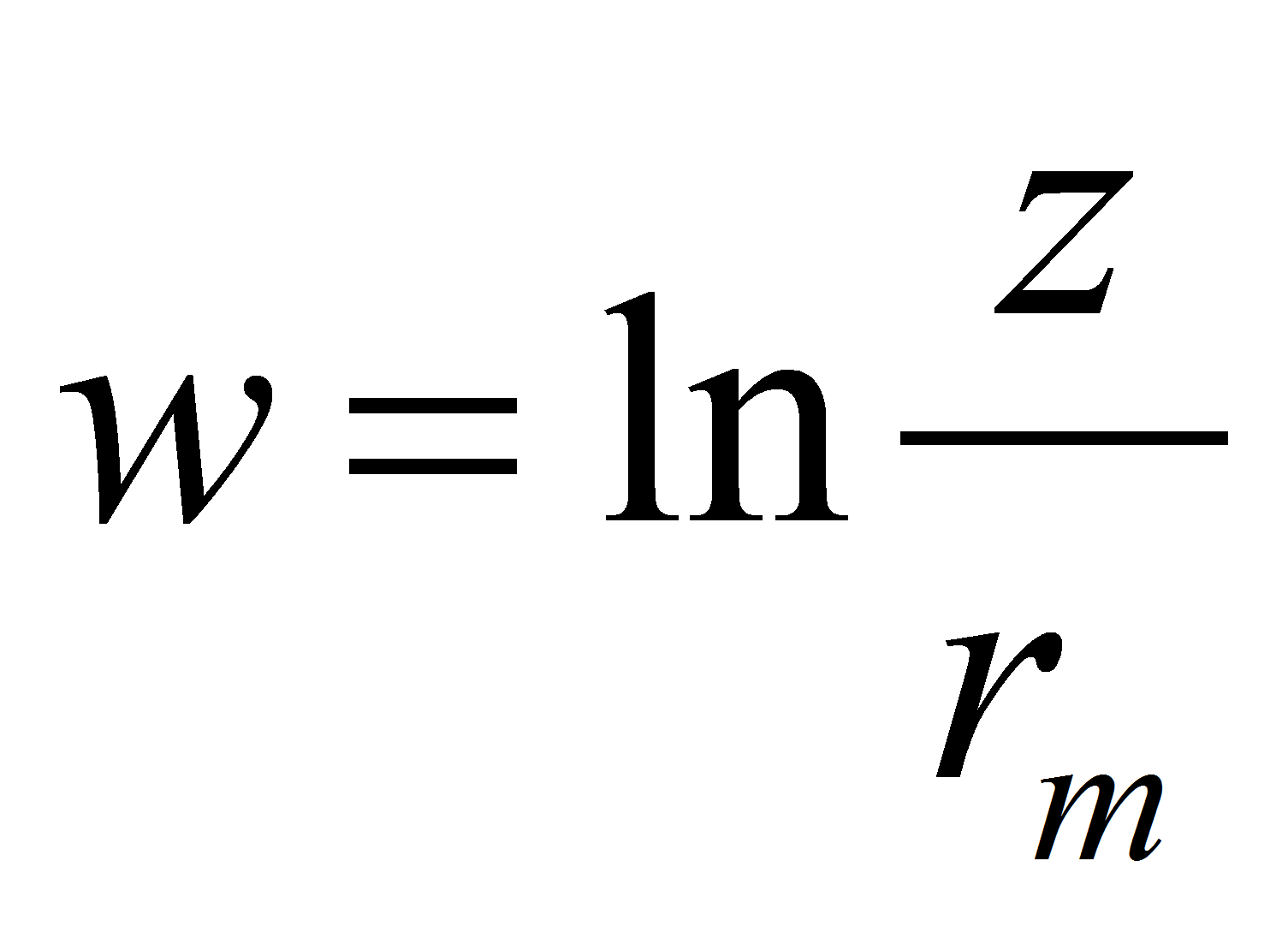

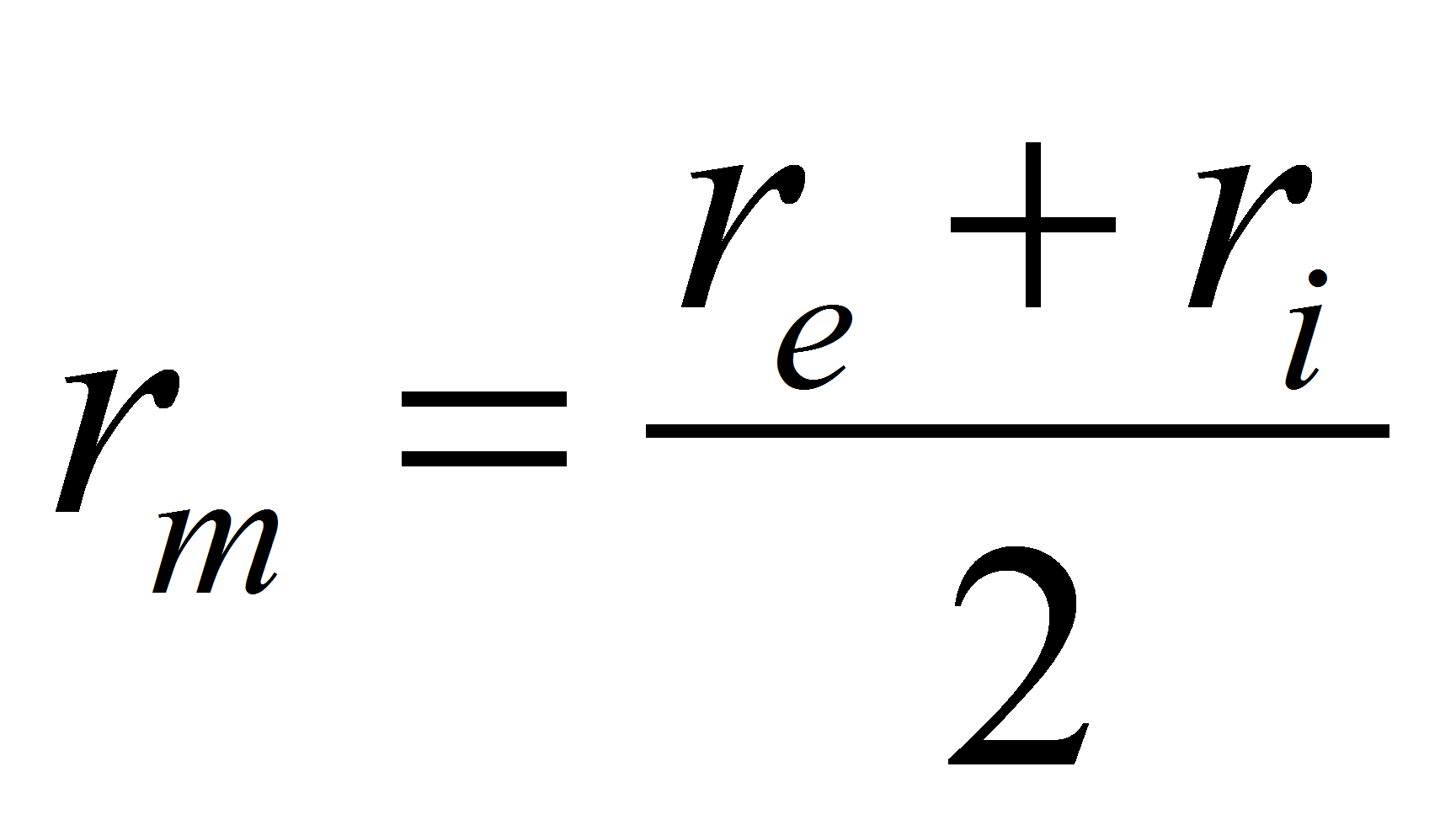

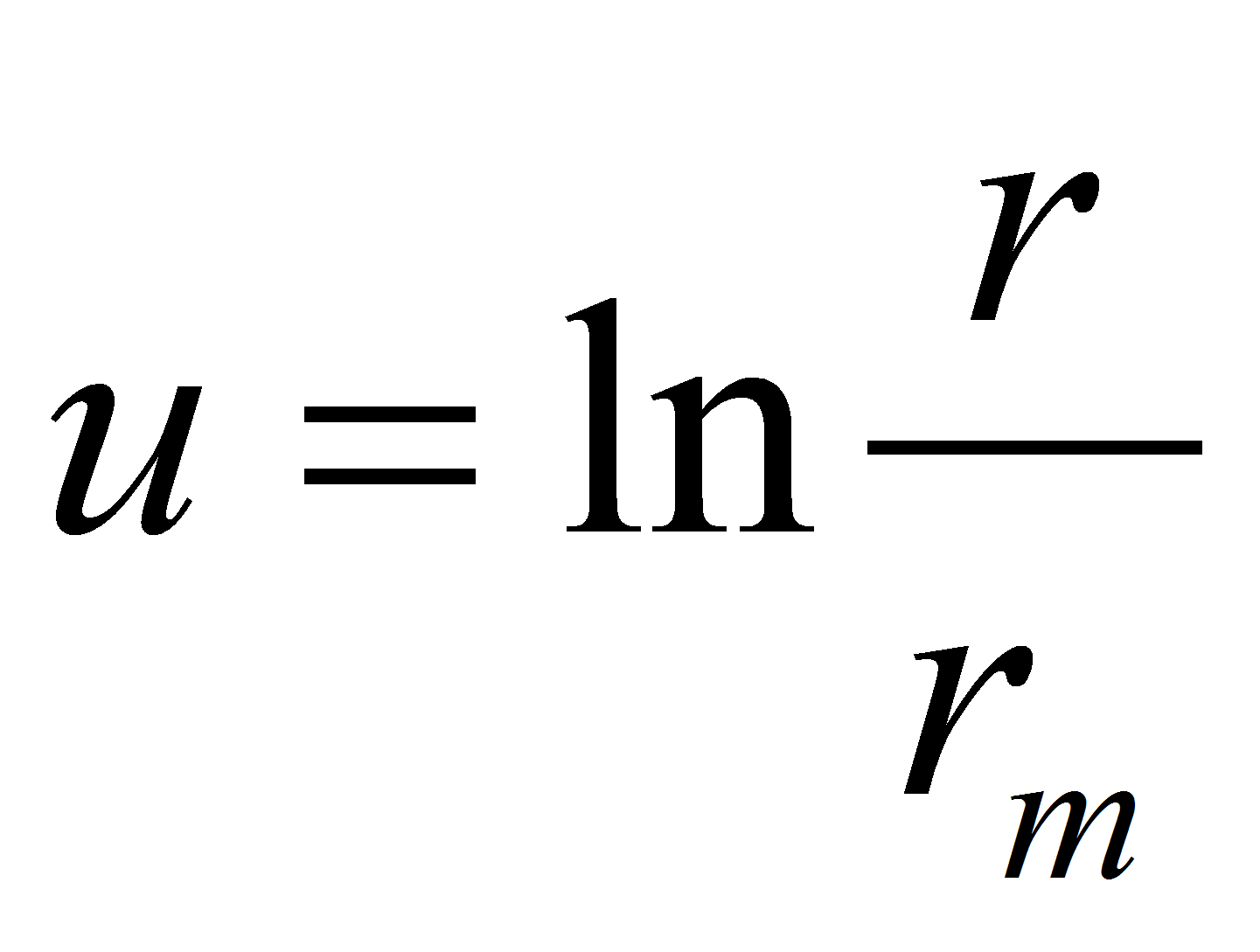

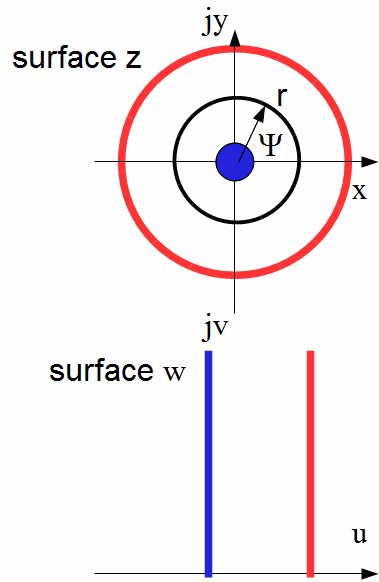

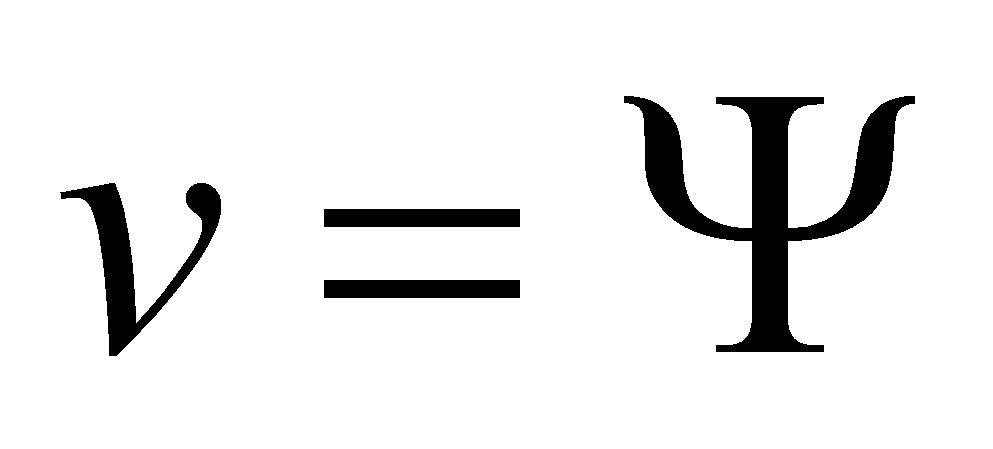

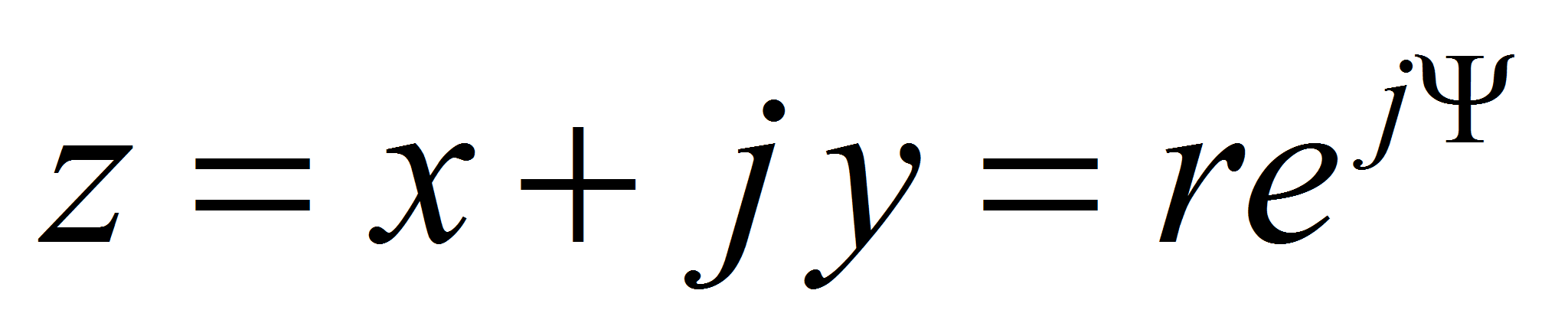

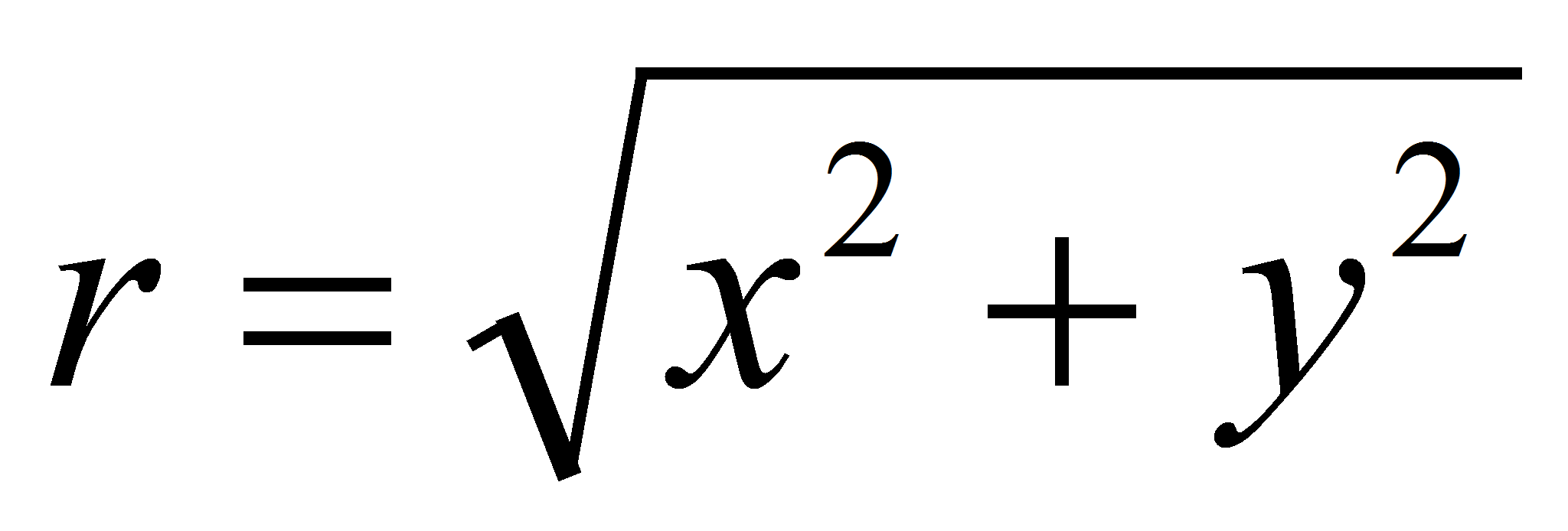

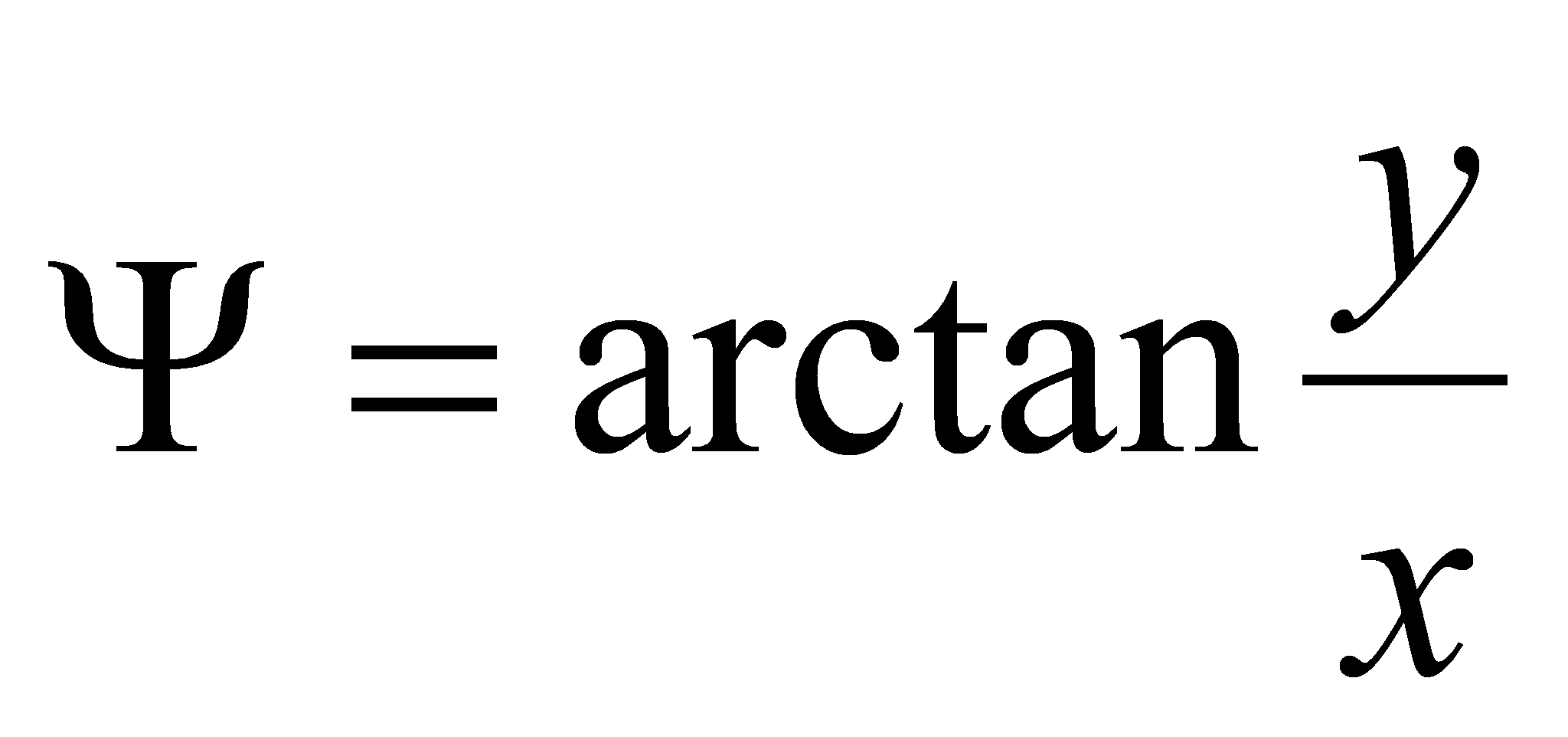

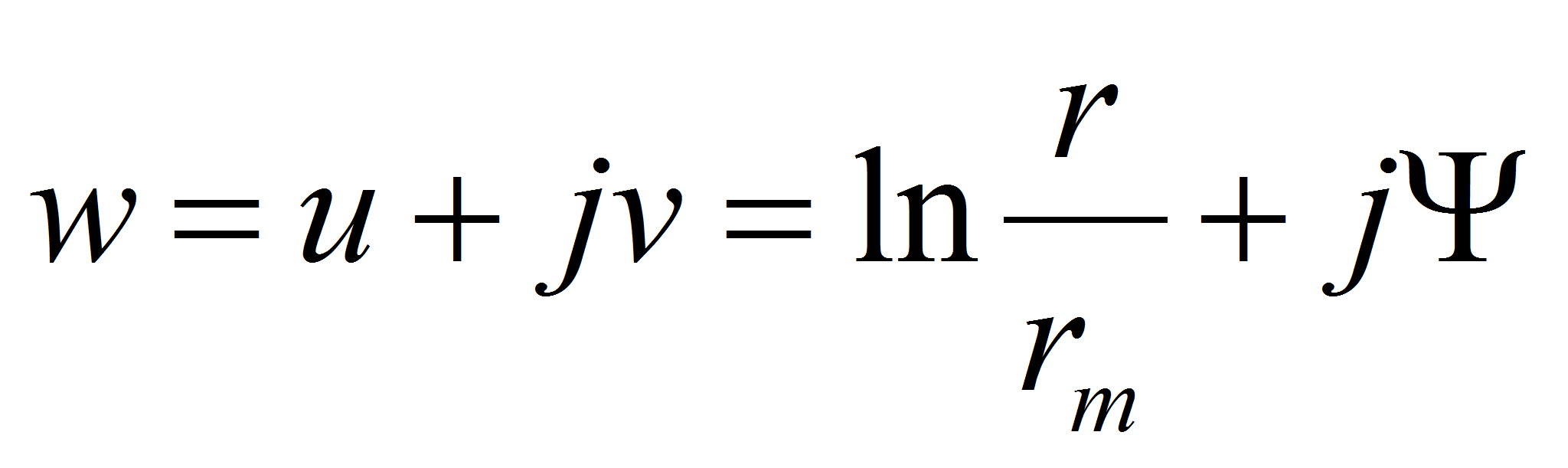

conform transformation between complex surfaces. The 2 dimensional Laplace equation is used as transformation function

Example: cylindrical capacitor

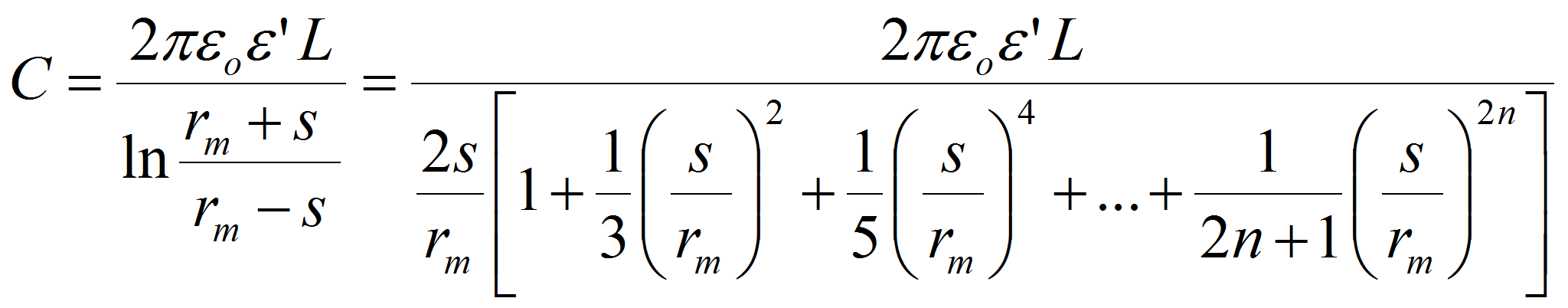

The capacitance per unit of length is given by

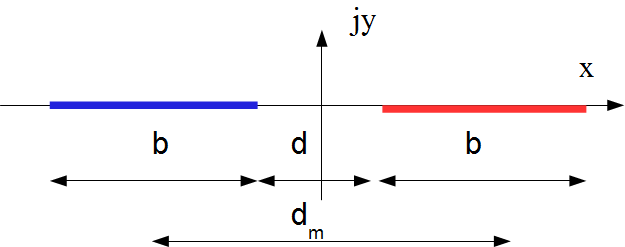

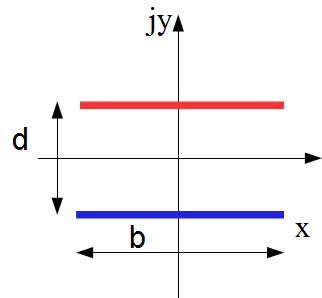

Example: conductive planar bands

The thickness of the bands is supposed to be very thin. The calculation requires elliptic functions.

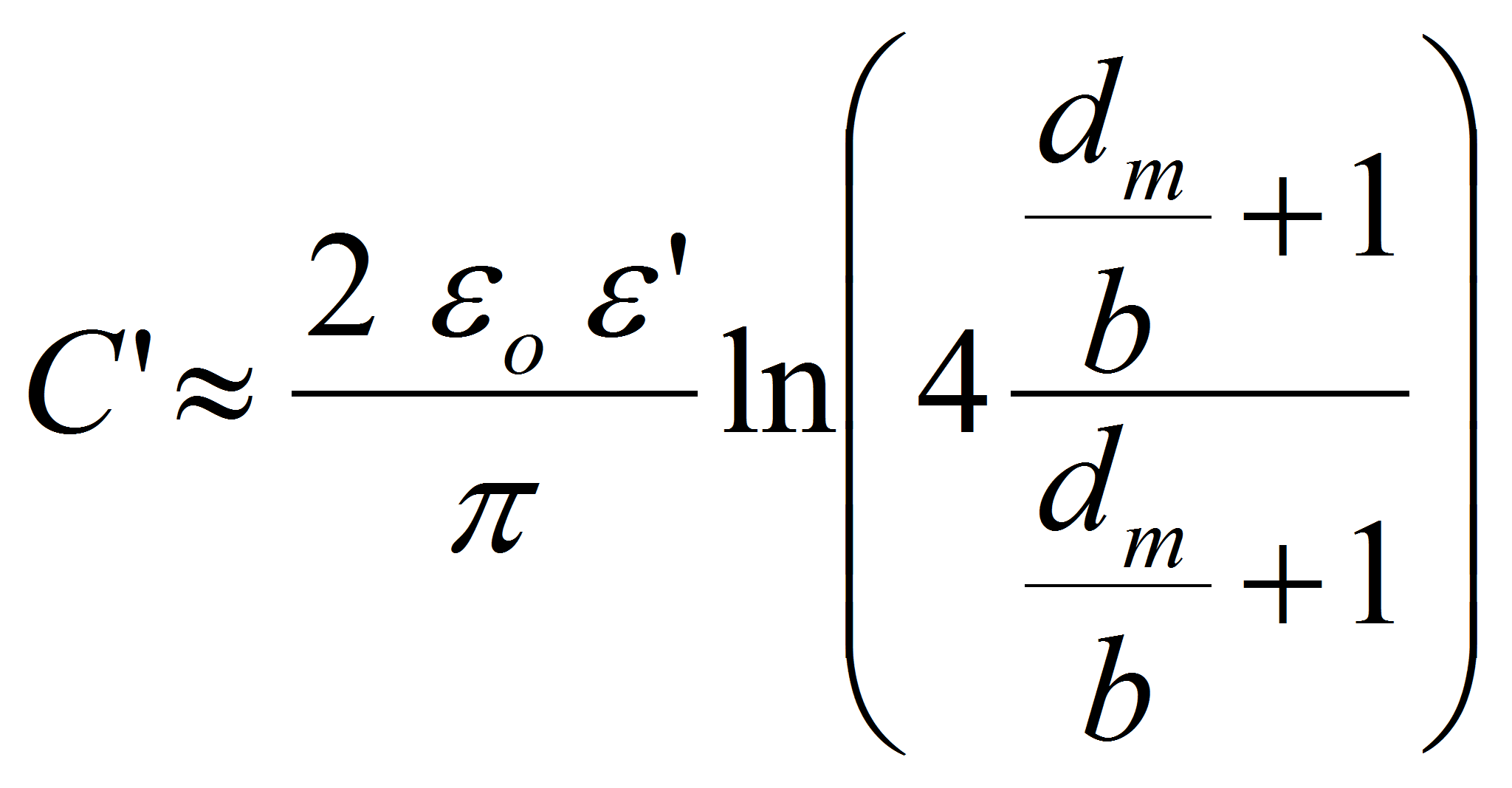

The solution for the capacitance per unit of length is given by:

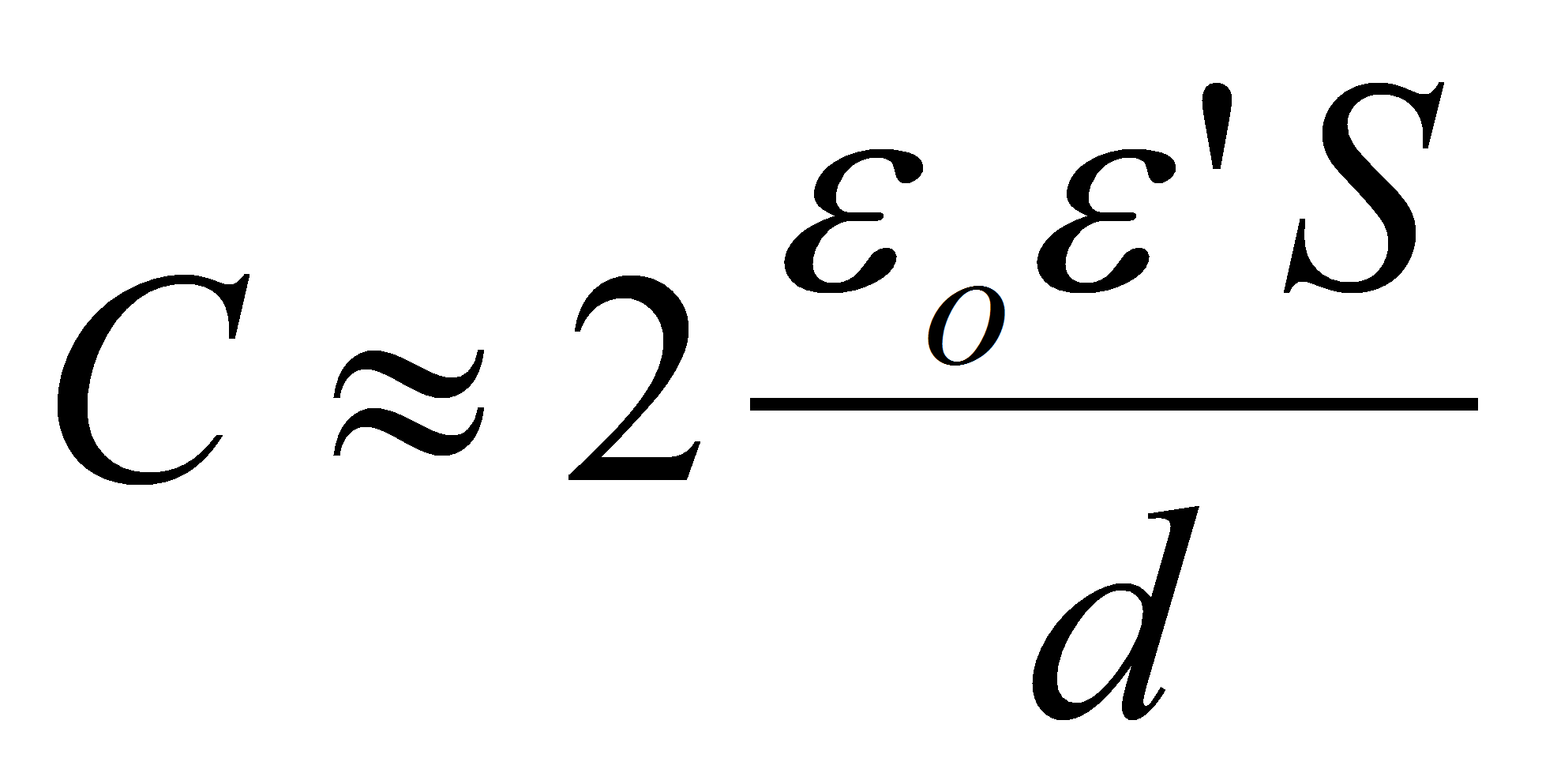

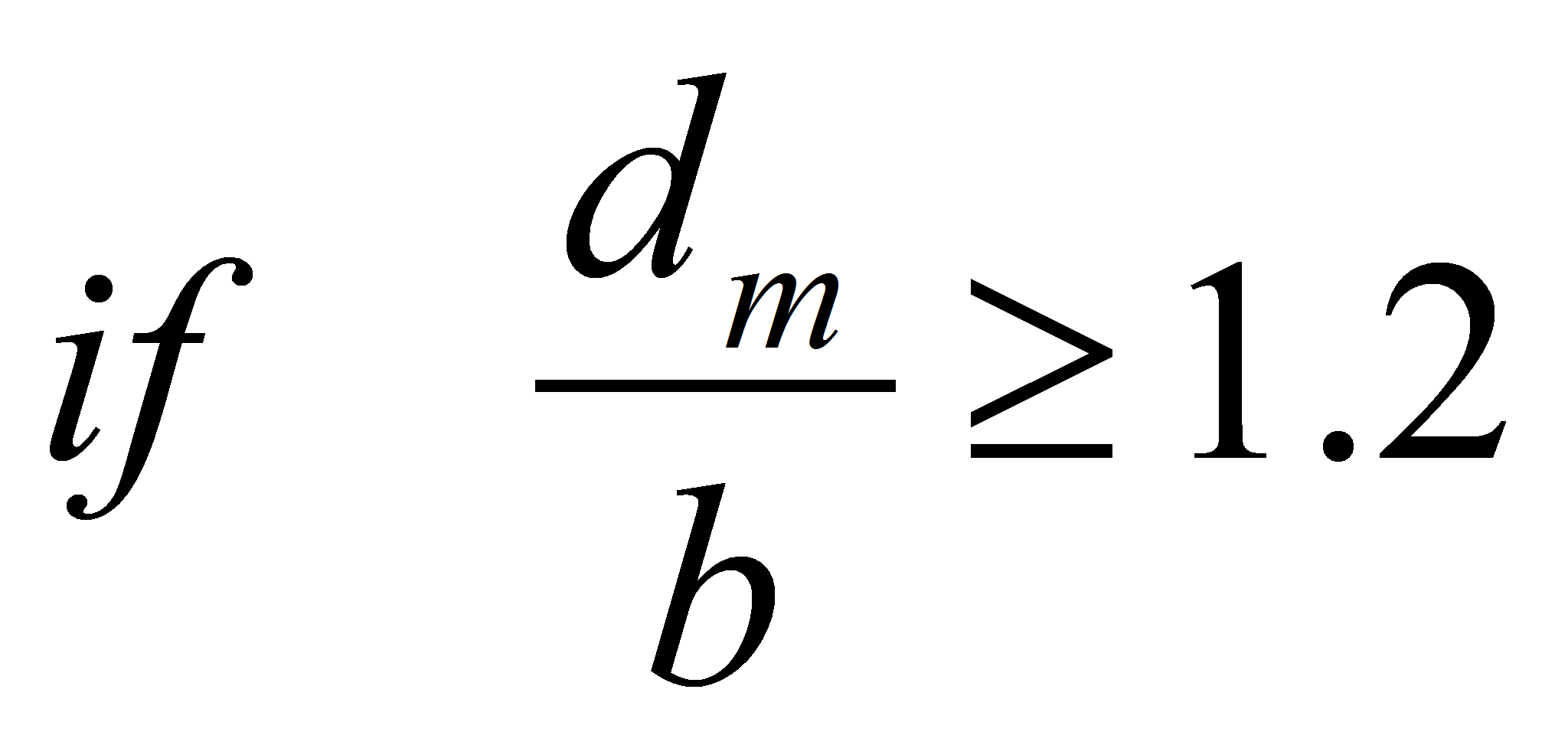

In the next geometry the general solution is the same. The approximation differs and gives the following result:

Rounding the electrode hedges

The sharper the electrode hedges are, the larger is the electric field close to the hedge.
It's often at this place that partial discharges or breakdowns are initiating.

Given an electrode thickness a, a rounding radius ρ
and a distance between the electrode d, two cases must be distinguished:

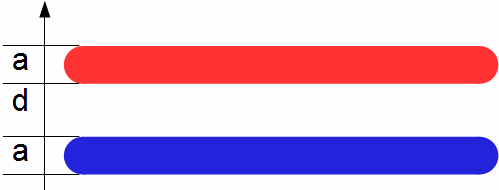

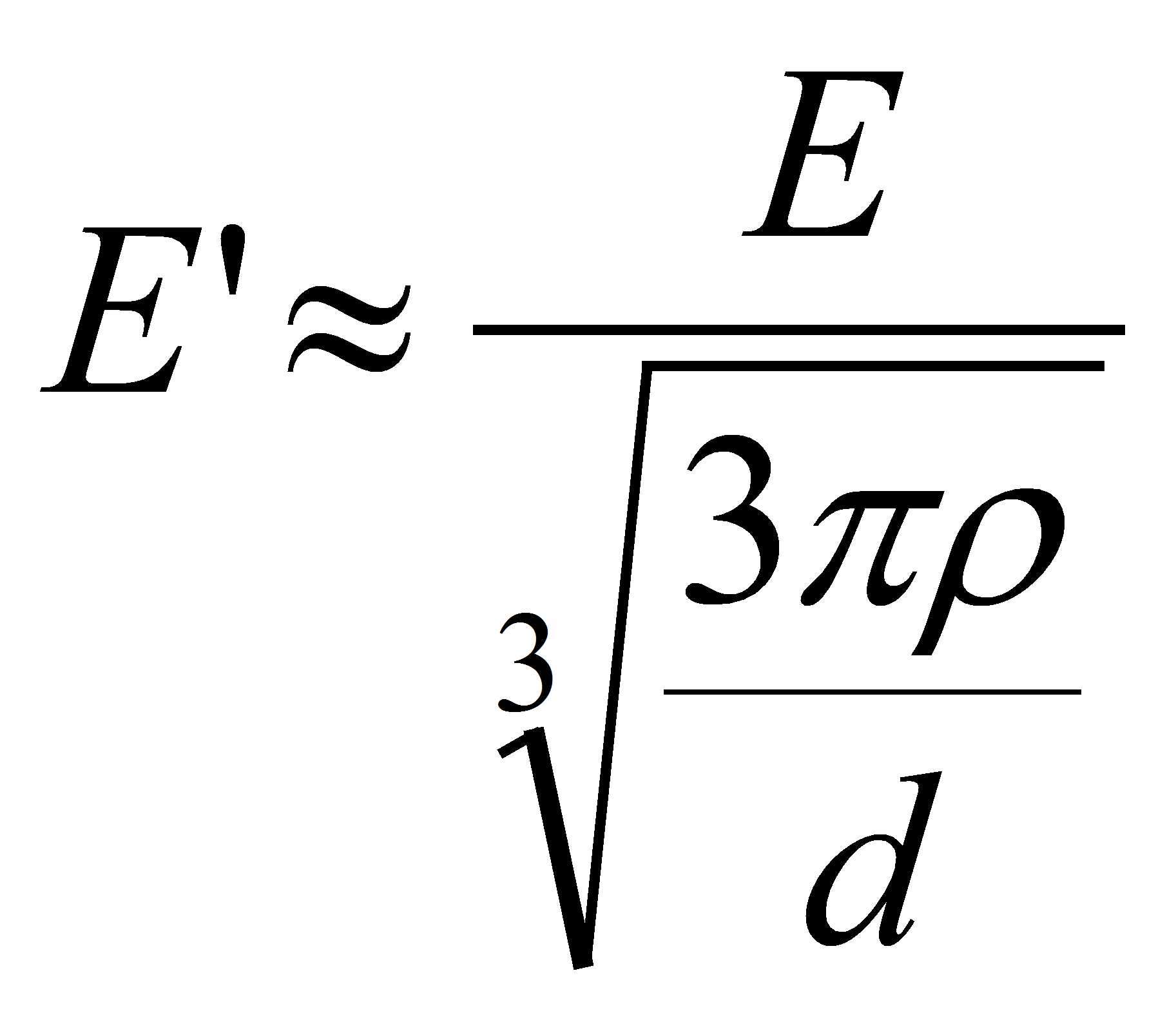

Case 1: the electrode thickness 2a << d the distance between the electrodes

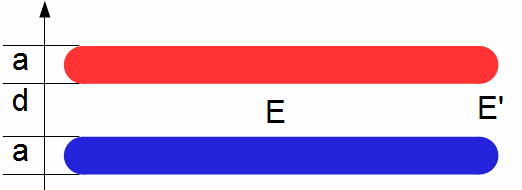

E is the electric field in the center of the capacitor where it is homogeneous,

E' is the electric field close to the hedge,

a is the electrode thickness,

d is the distance between the electrode,

ρ is the rounding radius.

Case 2: the inverse situation where 2a > d

Geometry: winding

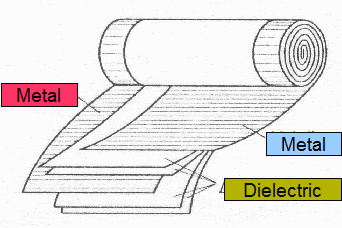

A winding is a spiral made of 2 electrode bands and 2 dielectric
systems. Each of these dielectric system is composed of one or a plurality of different dielectric films which can be (paper,
polypropylene (PP), polyethylene terephtalate (PET), ….).

S is surface of the active part of the electrode band.
S = electrode length L x electrode width W.

Geometry II: Ceramic capacitor and feed through capacitance
